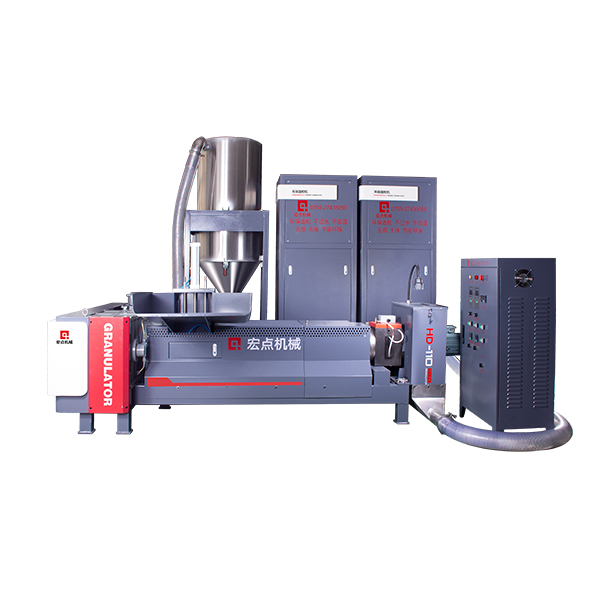

HD-110 Medium Air Cooled PE Plastic Pelletizer
Model: HD-110
Output Range *: 80 ~ 130 Kg per hour(Real output, HDPE ~ LDPE, but it does vary for different materials)
Final Product: Uniform, Reuseble Plastic Pellets
Machine Components: Main extruding motor, Reducer/Gearbox(belt sheave gearbox speed reduction drivetrain), Single Screw & Barrel, Barrel Heating Zone, Barrel Degassing Design, Dual Stations Hydraulic Filter Screen Exchanger, Die-face hot cutting units, Air blower pellets cooling and conveing system, Cooling cabinets, Pellets storage tank
Recycling Material: PE related factory clean wastes, Post Industrial PE Wastes, LDPE, LLDPE, HDPE
Feeding Method: Feed in rolls, or Feed in film scraps, lumps and has no requirments of the material forms
Screw Diameter: 110 MM
Screw L/D: 1600/110
Screw Material: 38 CrMuAl
Degassing: Single vented degassing, open optional
Cutting Type: Hot-die face cutting
Cooling Method: Air blower, room temperature cooling
Voltage: Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Optional Devices: Film Roll Racks
Delivery Time: 7 Days After Payment
Warranty: One-year
Technical Assistance: Engineers available to service machinery overseas
