HD-75 Small Air Cooled Plastic Granulator Recycling Machine

Model: HD-75
Output Range *: 30~60kg per hour
Final Product: Plastic pellets/granule
Machine Components: 1
Recycling Material: HDPE, LDPE, LLDPE, other materials need to be tested before order
Feeding Method: Manual feeding, feeding in rolls or in scraps, with material pusher
Screw Diameter: 75mm
Screw L/D: 700/75
Screw Material: Chrome steel
Degassing: N/A
Cutting Type: Hot die face pelletizing
Cooling Method: Air blower air cooling pelletizer, room temperature, no chiller
Voltage: Standard 380V 50Hz 3Phases, or Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Optional Devices: Film Roll Rack
Delivery Time: 7 ~ 10 Days after payment received
Warranty: 1 year since first running at customer factory
Technical Assistance: Engineers available to service machinery overseas

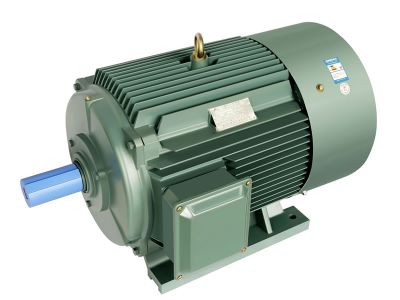

  • Extruding Motor

    Extruding Motormain extruding motor of HD-75 air cooled plastic granualtor machine

    15KW

    1

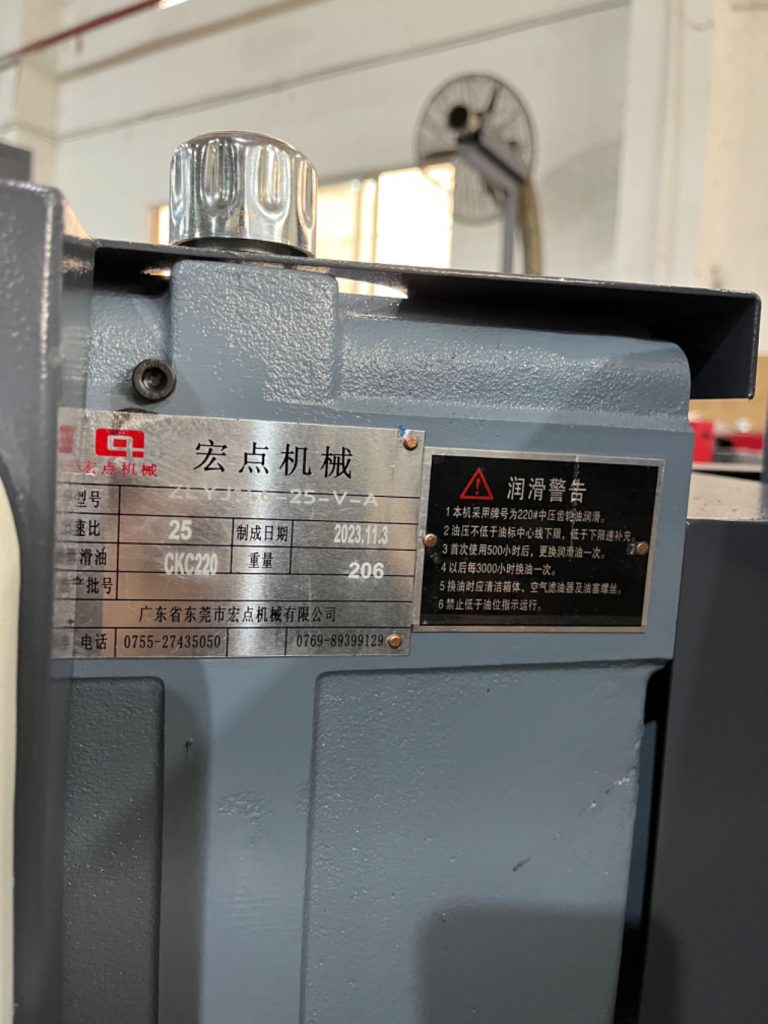

  • Reducer

    Reducerreducer, gear box of HD-75 air cooled plastic granualtor machine

    146

    1

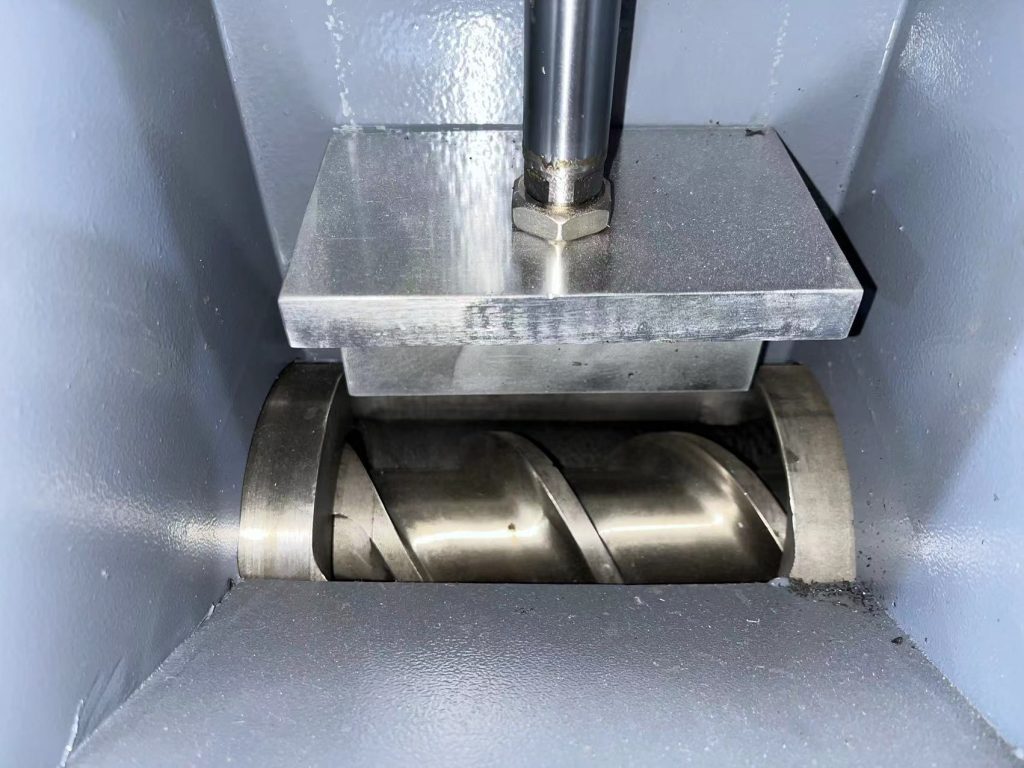

  • Screw & Barrel

    Screw & Barrelscrew and barrel of HD-75 air cooled plastic granualtor machine

    Screw Diameter: 75 mm

    Screw Length: 700 mm

    1

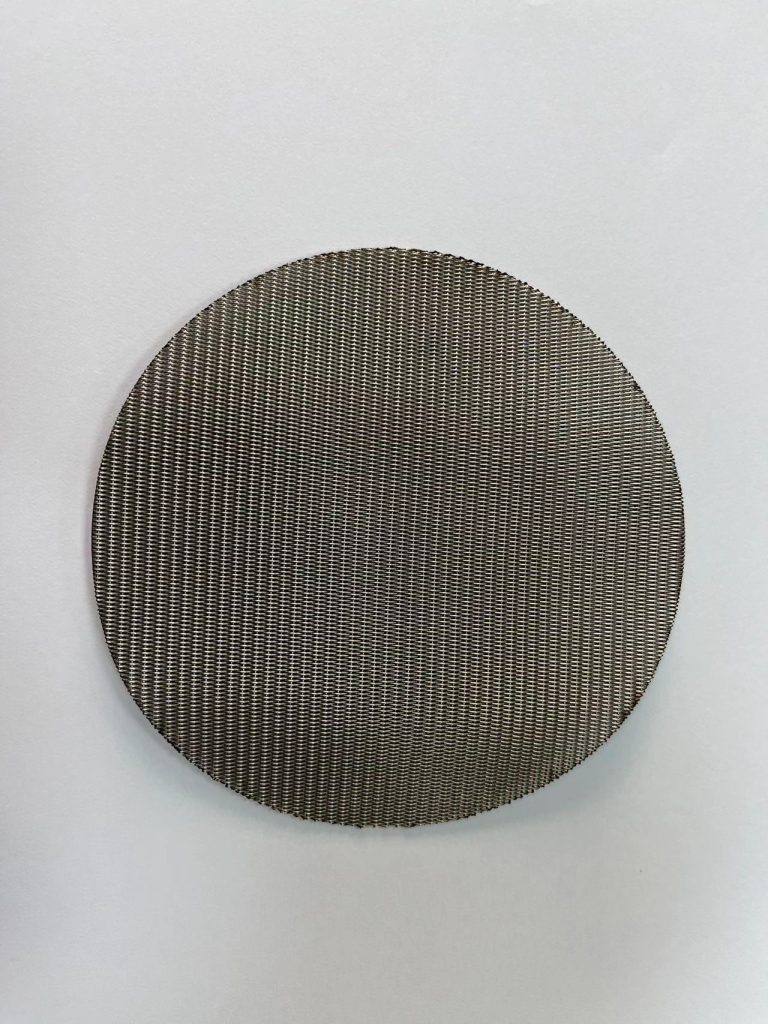

  • Filter Meshes

    Filter MeshesFilter meshes of HD-75 air cooled plastic granulator machine

    Dimeter: 75 mm

    Mesh counts: 80

    Material: Stainless steel

    20
